Dashwood Trinity Options and Accessories

COLOURS

Dashwood vinyl windows come standard with white interiors and exteriors. Choose from the optional exterior colours shown.

*Colours shown here may vary from actual application due to uncontrollable factors such as the lighting in your room and monitor settings.

Optional

Standard DI White

Sandstone

Sable

Terrastone

Dark Brown

Black

Cloud White

Royal White

Maize

Country Almond

Wicker

Sandalwood

Beige

Canyon Clay

Hickory

Storm

Charcoal

Bahama Brown

Bronze

Red Rock

Brick Red

Crimson Red

Cranberry

Forest Green

Old World Blue

Custom colours and interior finishing is also available.

Dashwood windows with optional colours feature a revolutionary coating specially formulated for vinyl that is designed and tested for superior performance in all environmental conditions to resist peeling, flaking and chalking.

GLASS

Dashwood windows feature insulating glass manufactured by Cardinal Glass Industries, a leader in the development and manufacture of advanced residential glass for windows and doors.

Trinity Options and Accessories - Glass Options

Choose the glass that best suits your situation and objectives.

Visit Cardinal Glass Industries Website

Endur IG spacer

Stainless steel spacer
Desiccant material
“Polyisobutylene” primary seal
Specially formulated secondary seal

CARDINAL LOĒ-180™

Best total performance for colder climates
Blocks heat loss to the outside and reflects heat back into the room
Allows the winter sun’s heat to pass into the room
Standard in Dashwood windows

CARDINAL LOĒ²-272®

Year round performance
In winter reflects heat back into the room
In summer reflects sun’s heat and damaging UV rays

CARDINAL LOĒ³-366®

3 layers of Low-E coating
High solar control without a dark tint appearance
Balanced performance for year-round comfort

CARDINAL LOĒ²-240®

Perfect choice for high solar glare locations
Blocks solar heat gain maintaining cooler indoor temperatures
Tinted appearance reduces visible light by 60%

Textured Glass Options

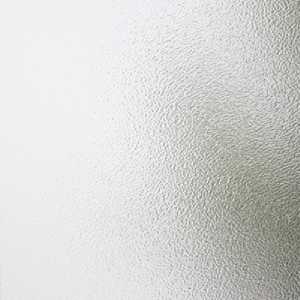

Obscured

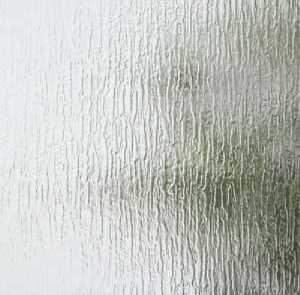

Rain

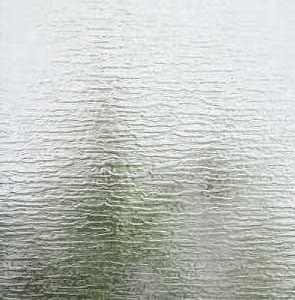

Hurricane

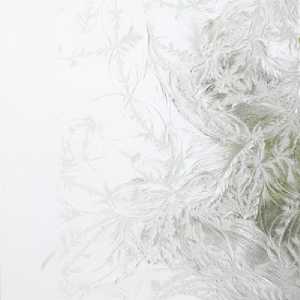

Glue Chip

Sandblast

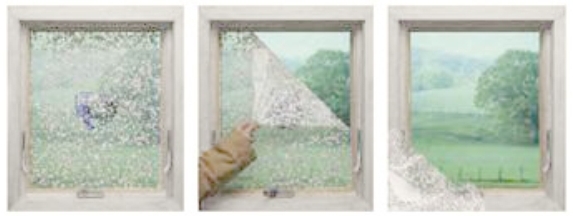

GLASS PRESERVE™ PROTECTIVE FILM

A little added insurance for your new window investment. This optional removable protective film is applied to the exterior and interior glass surfaces at the factory to shield the glass from unwanted debris and scratches during shipping, handling and installation. Peels away when the job is finished to reveal clear unblemished glass.

NEAT® NATURALLY CLEAN GLASS

A special titanium-dioxide coating applied to the glass exterior reacts with the sun’s UV rays to loosen the bond of organic material to the glass surface. Dirt is easily rinsed away with rain. The extremely smooth surface of Neat Glass sheets water away promoting faster evaporation and reduced water spotting resulting in cleaner, clearer glass. Optional in Dashwood windows. Includes Preserve™ protective exterior film.

All Trinity® Series window come standard with double pane Low E Glass or Optional Triple Pane Glass

DAS_4546 Trinity corner - double

DAS_4543 Trinity corner - triple

Hardware

Standard Truth Encore®

Standard Truth Encore® operating hardware features an attractive “full flip” handle that neatly nests in the operator cover for clean appearance that won’t interfere with window coverings. Requires 33% less effort to open and close compared to the standard hardware.

Additional finishes available

STANDARD CASEMENT & AWNING Multi Point locking hardware

Standard casement and awning locking and operating hardware comes with white or black finish.

Double Hung hardware

Traditional Double-Hung style windows feature upper and lower sashes that slide up and down for ventilation. Both sashes tilt inward for easy cleaning.

Cam-Action Lock and Keeper – work in conjuction with interlocking meeting rail, pocket sill design and weather sealing system for weather-tight security. Available white or black finish.
Recessed Tilt Laches – finger activated latch release locks allow sash to swing inwards for cleaning; recessed for a clean interior appearance.
Constant Force Coil Balance System – concealed within the frame, each coil balance is gauged for the specific sash size and weight; requires less effort to raise and lower the sash compared to other spiral balance systems.

single_hung_double_hung_hardware

Gliding hardware

Recessed Tilt Laches – finger activated latch release locks allow sash to swing inwards for cleaning; recessed for a clean interior appearance.

Trinity-tilt-latch2

GRILLES AND DIVIDED LITES

Dashwood windows are available with grille and divided lite options in a number of standard patterns and custom configurations.

INTERNAL GRILLES BETWEEN THE GLASS (GBG)

Permanently sealed inside the insulating glass for traditional appearance and easy cleaning. Choose from flat or contoured profiles in widths shown.

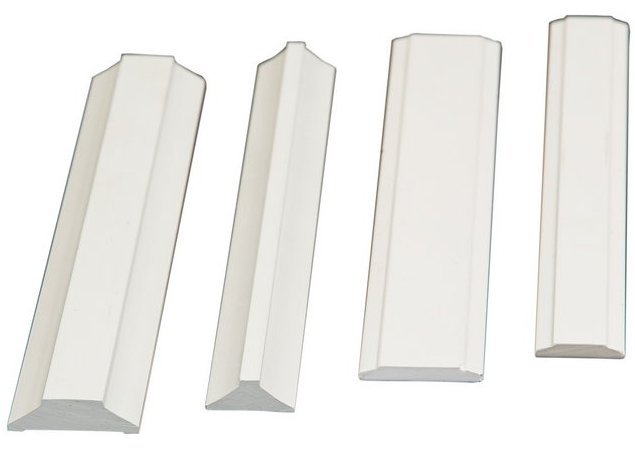

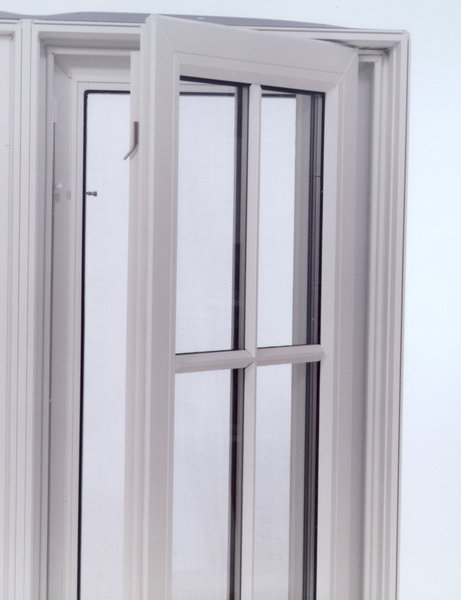

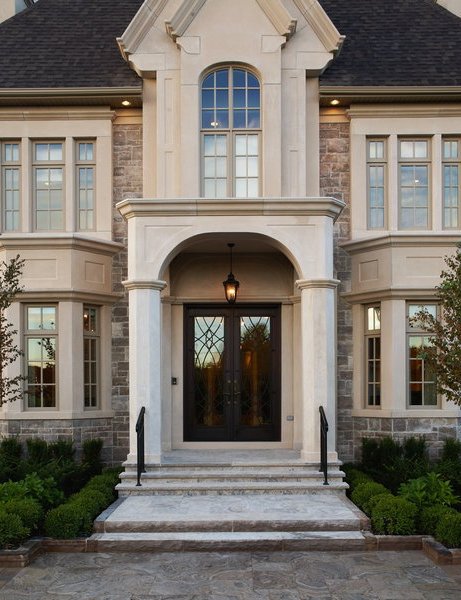

SIMULATED DIVIDED LITES (SDL)

Grille bars are permanently applied to the interior and exterior glass surfaces to create the look of individual true divided lites while maintaining the energy efficiency of modern insulating glass. Add an optional spacer between the glass for an even more authentic appearance.

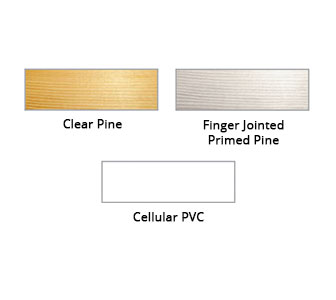

INTERIOR JAMB OPTIONS

Interior jamb extensions are available factory applied or loose to suit wall dimensions of 4-5/8”, 5-5/8”, 6-5/16”, 7-7/8” and 10-1/2”. Custom dimensions are also available. Choose from these material types.

(78) DAS_4466 Trinity - int. PVC extension

trinity_interiorjambcolors

trinity_interior(67)

EXTERIOR FRAME AND BRICKMOULD OPTIONS

A selection of exterior brickmould profiles are offered for use in conjunction with exterior masonry or siding applications.

An authentic sillnose is also offered for an architecturally correct appearance.

Exterior accessories may be colour coordinated to window exteriors or a different colour can be specified for a custom 2-tone appearance.

DAS_4546 Trinity corner - double2

1''

1 ¼''
w/J Channel

1 ¼''

1 ½''

2''

2 ½''
w/J Channel

Sill Nosing
w/ End Cap

SCREENS and Accessories

STANDARD SCREENS

Standard screens feature charcoal fibreglass 18 X 16 mesh in aluminum frame with wide surround frame with concealed fasteners on casement and awning windows.
